Installing security camera wiring is a crucial part of setting up a reliable surveillance system. Proper installation ensures a stable connection and neat appearance. Here’s a step-by-step guide to help you install security camera wiring

Step 1: Plan Your Wiring Route

1. Survey the Area: Determine the best path for running wires by surveying the installation site. Identify the locations of your cameras, DVR/NVR, and power sources.
2. Measure Distance: Measure the distance from each camera to the DVR/NVR and power source to ensure you have enough wire length.
3. Avoid Obstacles: Plan your route to avoid obstacles like doors, windows, and electrical lines. Use walls, ceilings, and conduits to hide and protect the wires.

Step 2: Choose the Right Wires

1. Coaxial Cable: For analog cameras, use RG59 or RG6 coaxial cables.
2. Ethernet Cable: For IP cameras, use Cat5e or Cat6 Ethernet cables, especially if using Power over Ethernet (PoE).
3. Power Cable: Depending on your setup, you may need separate power cables or use cables that combine video and power transmission.

Step 3: Gather Necessary Tools and Materials

1. Drill and Drill Bits: For making holes in walls or ceilings.
2. Fish Tape or Cable Puller: To guide wires through tight spaces and walls.
3. Cable Clips and Ties: To secure wires along the route.
4. Conduits and Junction Boxes: For protecting and organizing wires.
5. Utility Knife: For cutting drywall if necessary.
6. Stud Finder: To locate studs and avoid obstacles.

Step 4: Drill Holes

1. Mark Entry and Exit Points: Mark the spots where the wires will enter and exit the walls. Ensure these points are clear of studs and other obstacles.
2. Drill Holes: Use a drill with the appropriate bit to make holes at the marked entry and exit points. Make the holes large enough for the wires to pass through.

Step 5: Run the Wires

1. Insert Fish Tape: Insert fish tape into the hole at the camera location and guide it through the wall to the exit point.
2. Attach Wires to Fish Tape: Securely attach the security camera wires to the end of the fish tape.
3. Pull Through: Carefully pull the fish tape back through the wall, bringing the wires with it. Be patient and avoid forcing the wires to prevent damage.

Step 6: Route the Wires

1. Inside Walls: If running wires vertically inside walls, use the fish tape to guide the wires through wall cavities. If running horizontally, navigate around studs by drilling through them if necessary.
2. Through Conduits: If using conduits, feed the wires through them for added protection. Secure conduits with brackets or clips.

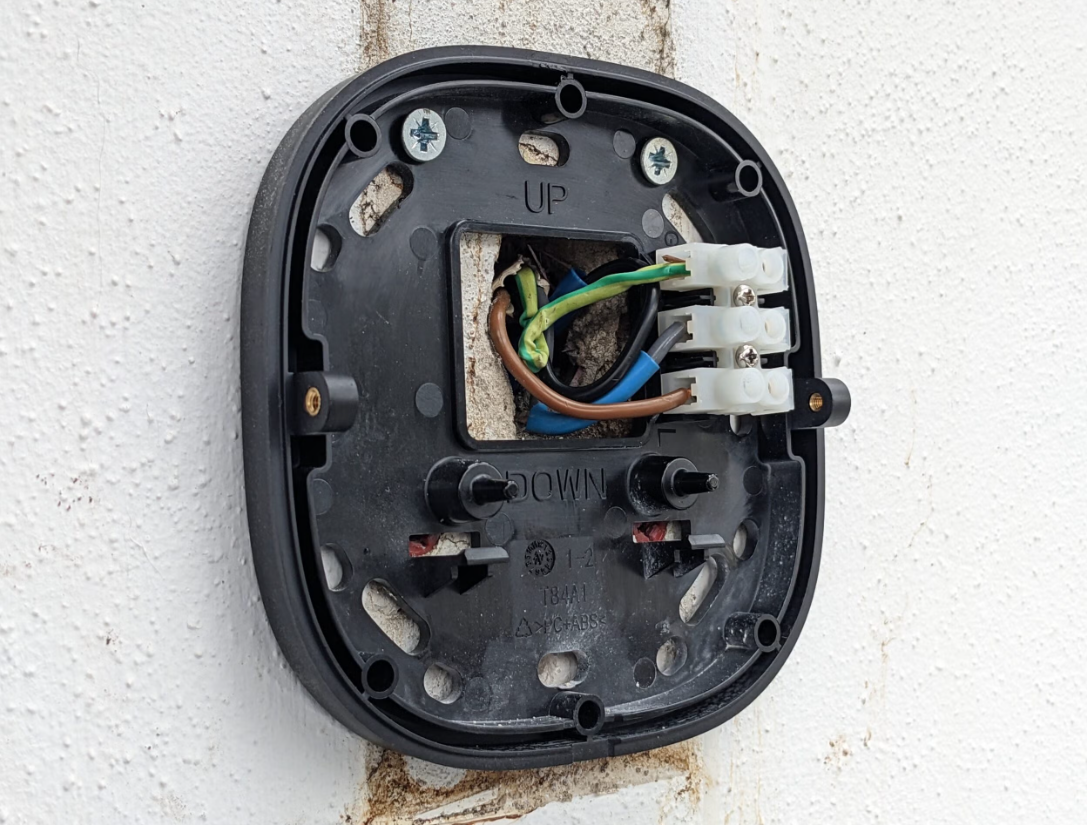

Step 7: Secure and Connect

1. Secure the Wires: Use cable clips and ties to secure the wires along the walls and ceilings. Ensure they are neat and out of the way.
2. Connect to Cameras: Attach the wires to the corresponding ports on the cameras.
3. Connect to DVR/NVR: Plug the other ends of the wires into the DVR/NVR.

Step 8: Power the Cameras

1. Direct Power Supply: Connect the power cables to a nearby power outlet using the provided adapters.
2. Power over Ethernet (PoE): If using PoE, ensure the Ethernet cable is connected to a PoE switch or injector, which provides power and data through the same cable.

Step 9: Test the System

1. Power On the Cameras: Turn on the cameras and check if they are receiving power.
2. Monitor the Feed: Verify the video feed on your monitor or DVR/NVR to ensure everything is working correctly.

Related Products

Frequently Asked Questions (FAQ)

1. What type of wire should I use for security cameras?

• Use RG59 or RG6 coaxial cables for analog cameras and Cat5e or Cat6 Ethernet cables for IP cameras. Consider using combined video and power cables for convenience.

2. How do I protect the wires from damage?

• Use conduits, junction boxes, and cable clips to protect and organize the wires along the route.

3. Can I run power and video through the same wire?

• Yes, you can use cables that combine video and power transmission or use Power over Ethernet (PoE) for IP cameras.

4. How do I ensure a neat installation?

• Plan your wiring route carefully, use conduits and cable clips, and secure the wires along walls and ceilings.

5. What should I do if the video feed is not working?

• Double-check the connections, ensure the wires are securely attached, and verify the power supply.
