Splicing security camera cables can be a practical solution when you need to extend the length of your existing cables or repair a damaged section. Here’s a comprehensive guide to help you splice security camera cables:

Step 1: Identify the Cable Type

1. Coaxial Cable: Commonly used for analog CCTV cameras. Includes a central conductor, insulation, shielding, and outer insulation.
2. Ethernet Cable: Used for IP cameras. Typically a CAT5e or CAT6 cable with multiple twisted pairs of wires.

Step 2: Gather Necessary Tools

1. Cable Stripper: For stripping the outer insulation from the cables.
2. Utility Knife: To carefully cut the outer insulation if a cable stripper is not available.
3. Heat Shrink Tubing: To cover and protect the spliced area.
4. Soldering Iron: For securely joining the wires.
5. Solder: To make the connections.
6. Electrical Tape: For additional insulation and protection.
7. Wire Cutters: To cut the cables and remove damaged sections.

Step 3: Prepare the Cables

1. Cut the Cable: Use wire cutters to remove the damaged section or to cut the cable where you want to splice it.
2. Strip the Insulation: Use a cable stripper or utility knife to carefully strip about 1-2 inches of the outer insulation from both ends of the cable.

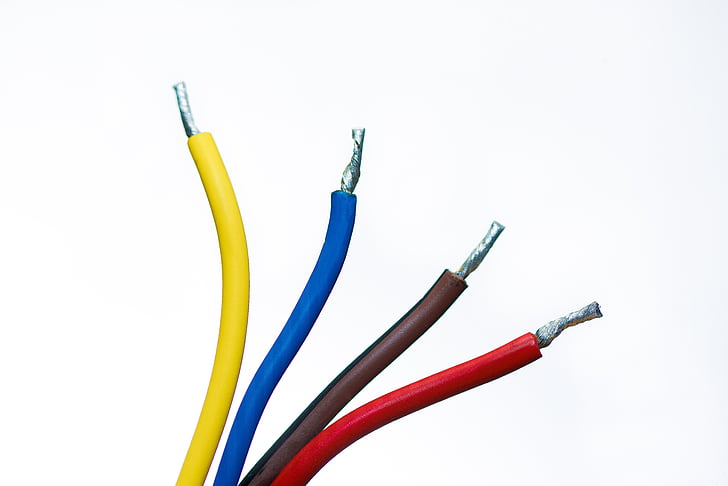

3. Expose the Wires: For coaxial cables, separate the shielding and expose the central conductor. For Ethernet cables, untwist and separate the individual wires.

Step 4: Splice the Cables

1. Match the Wires: Align the corresponding wires from both ends of the cable. For coaxial cables, ensure the central conductors are aligned, and for Ethernet cables, match the color-coded pairs.
2. Twist the Wires: Twist the corresponding wires together to create a secure connection.
3. Solder the Connection: Use a soldering iron and solder to join the twisted wires. Ensure a solid and secure connection.
4. Insulate the Wires: Slide heat shrink tubing over each soldered connection and apply heat to shrink it. This provides insulation and protection.
5. Wrap with Electrical Tape: For added protection, wrap the entire spliced area with electrical tape.

Step 5: Test the Connection

1. Power On the Camera: Connect the camera to the power source and monitor.
2. Check the Feed: Verify that the video feed is clear and stable.

Related Products

Frequently Asked Questions (FAQ)

1. Can I splice security camera cables myself?
   • Yes, with the right tools and careful handling, you can splice security camera cables yourself.
2. What tools do I need to splice security camera cables?
   • You’ll need a cable stripper, utility knife, heat shrink tubing, soldering iron, solder, electrical tape, and wire cutters.
3. What should I do if the spliced cable doesn’t work?
   • Double-check the connections, ensure all wires are correctly matched, and verify that the solder joints are secure.
4. Is it safe to splice security camera cables?
   • Yes, as long as the connections are properly insulated and protected, splicing security camera cables is safe.
5. Can I extend the length of my security camera cable by splicing?
   • Yes, splicing allows you to extend the length of your security camera cable by adding an additional section.
