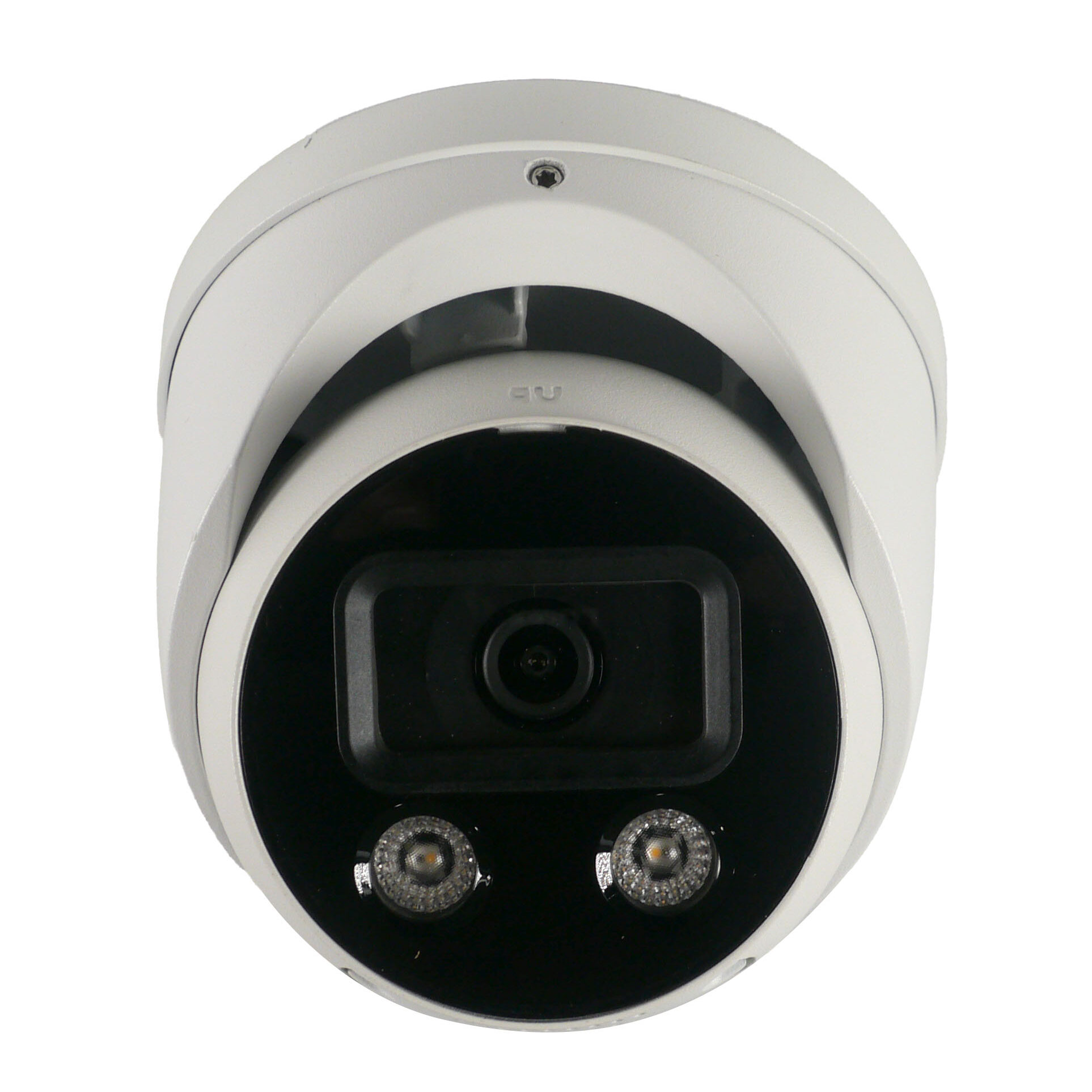

Introducing the ultimate security solution – our 5MP IPOD-ELS5IR28A-AD security camera with a 1/2.7″ CMOS image sensor. Whether you need surveillance for your home or business, the IPOD-ELS5IR28A-AD camera is designed to provide high-definition imaging with low-illuminance capabilities.
The camera’s ability to output 5MP at 20 fps and support 2688 × 1520 at 25/30 fps ensures that every detail of your footage is captured in crystal clear clarity. And with H.265 codec technology, you can expect a high compression rate and ultra-low bit rate, allowing for efficient storage without sacrificing quality.
Not only is this camera great for imaging, but it also offers a range of intelligent monitoring features such as ROI (Region of Interest), SMART H.264 +/H.265+, and AI H.264/H.265, as well as flexible coding options that make it suitable for a variety of bandwidth and storage environments. Additional features like rotation mode, WDR (Wide Dynamic Range), 3D NR (Noise Reduction), HLC (Highlight Compensation), BLC (Backlight Compensation), and digital watermarking enhance the quality and usefulness of your surveillance footage.
But that’s not all – this camera also includes sound and light alarm linkage, allowing you to easily arm and disarm the system with just one tap. It features 1 in and 1 out for alarms, as well as 1 in and 1 out for audio. Plus, it supports a maximum of 256 G Micro SD card and has a built-in microphone and speaker for two-way talk capabilities.
Installation is a breeze with the ability to power the camera with either 12 VDC or PoE (Power over Ethernet). It also boasts ePoE (Enhanced Power over Ethernet) which enables you to go up to 800 meters on a single cable run without needing to add anything along the line and features an IP67 protection rating, ensuring its durability and resistance to the elements.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Features
ePOE
ePoE, or enhanced Power over Ethernet, is an innovative solution that utilizes specialized algorithms capable of extending how far both IP and analog security cameras can reach. ePoE devices are now standard on ONVIF devices and can even be incorporated into traditional PoE systems. What makes ePoE devices different is that they have the capability of converting coaxial infrastructures with the latest IP devices. This capability makes it possible to increase transmission distances through both coaxial and ethernet cables.
Weather Resistant
Remote Viewing Apps
The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.
| Features |
· 5MP 1/2.7" CMOS image sensor, low illuminance, high definition image · Outputs max. 5MP (2592 × 1944)@20 fps and 2688 × 1520 (2688 × 1520)@25/30 fps · H.265 codec, high compression rate, ultra-low bit rate · Built-in efficient warm light and IR LED, and the Max. IR distance is 50 m · ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments · Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes · Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked · Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light during the configured period · Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker, support two-way talk. · 12V DC/PoE power supply, easy for installation · ePoE, IP67 protection · SMD 3.0 |
| Lens | 2.8mm Fixed Lens |
| Megapixel | 5MP |
| Image Resolutions | 5M (2592 × 1944), 4M (2688 × 1520), 4M (2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 |
| Sensor Size | 1/2.7 inch CMOS |
| IR Distance | 164 FT |
| Weather Protection | IP67 |
| Voltage | DC 12V (±30%)/PoE (802.3af)/ePoE |
| Temp Range | –40°F to +140°F |
| Dimensions | 4.8 by 4.4 inches |
| Weight | 2.1 lb |
| Audio | Built In Mic |
| SD Card Compatible | Yes |
| Perimeter Protection | Yes |
| Object Detection | No |
| Face Detection | Yes |
| Face Recognition | No |
| Smart Motion Detection | Yes |
| LPR | No |
Downloads
Document Downloads
 |
Product Specifications | Detailed Feature List and Product Specifications |
|
Product Manual | Original Product Manuals |
