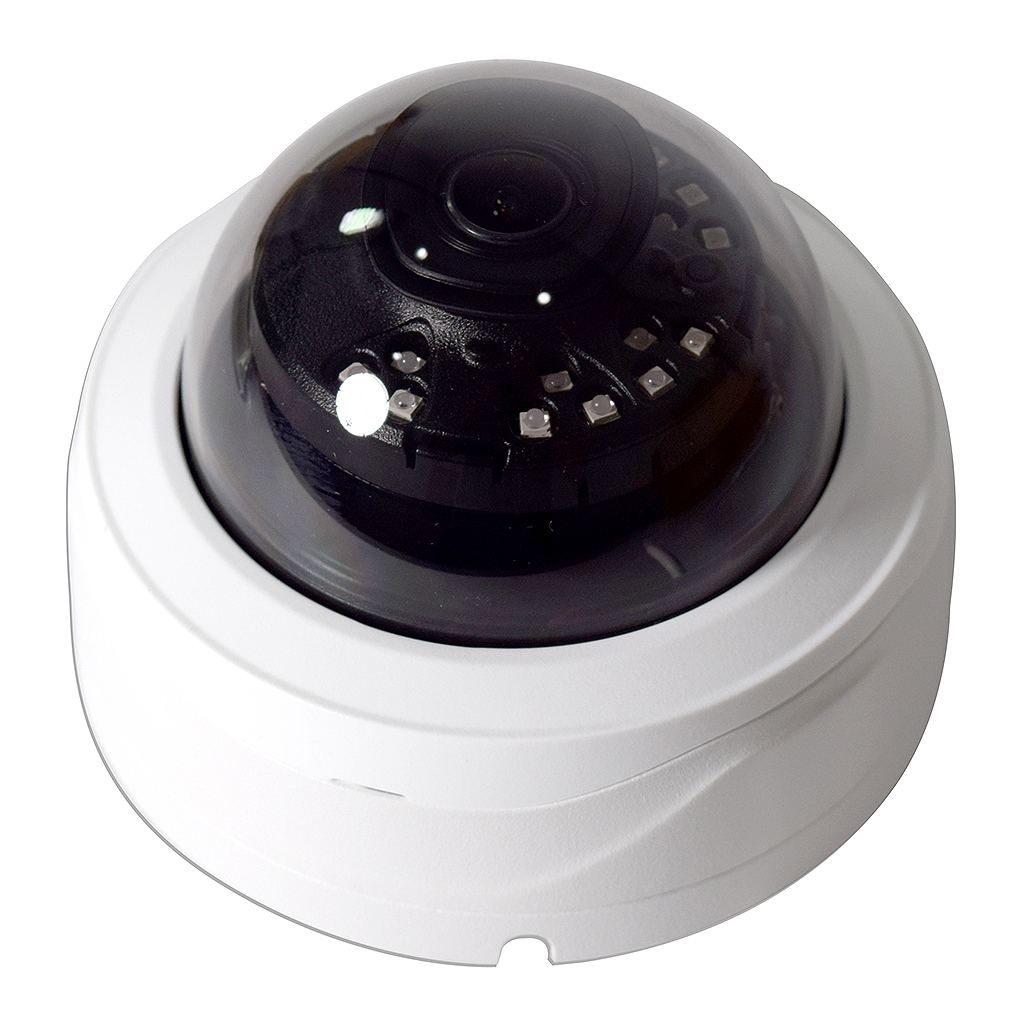

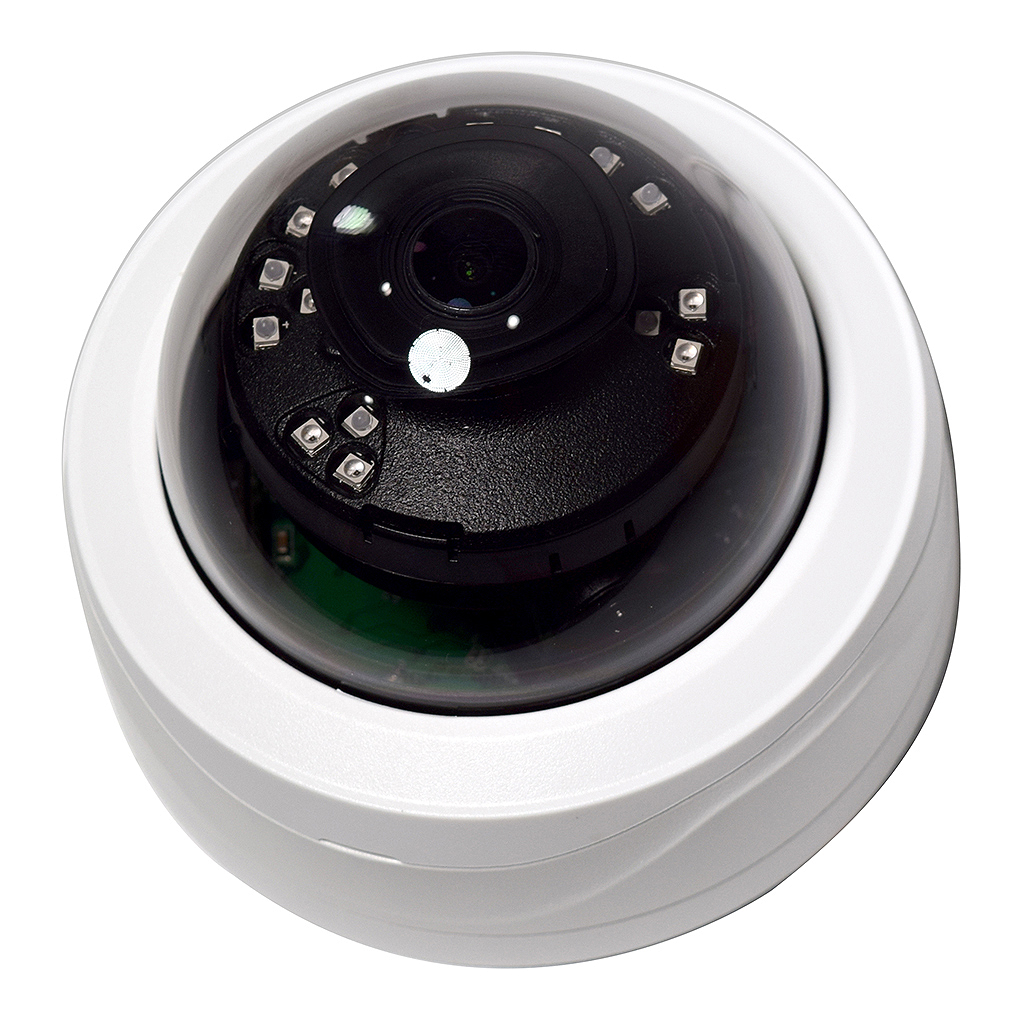

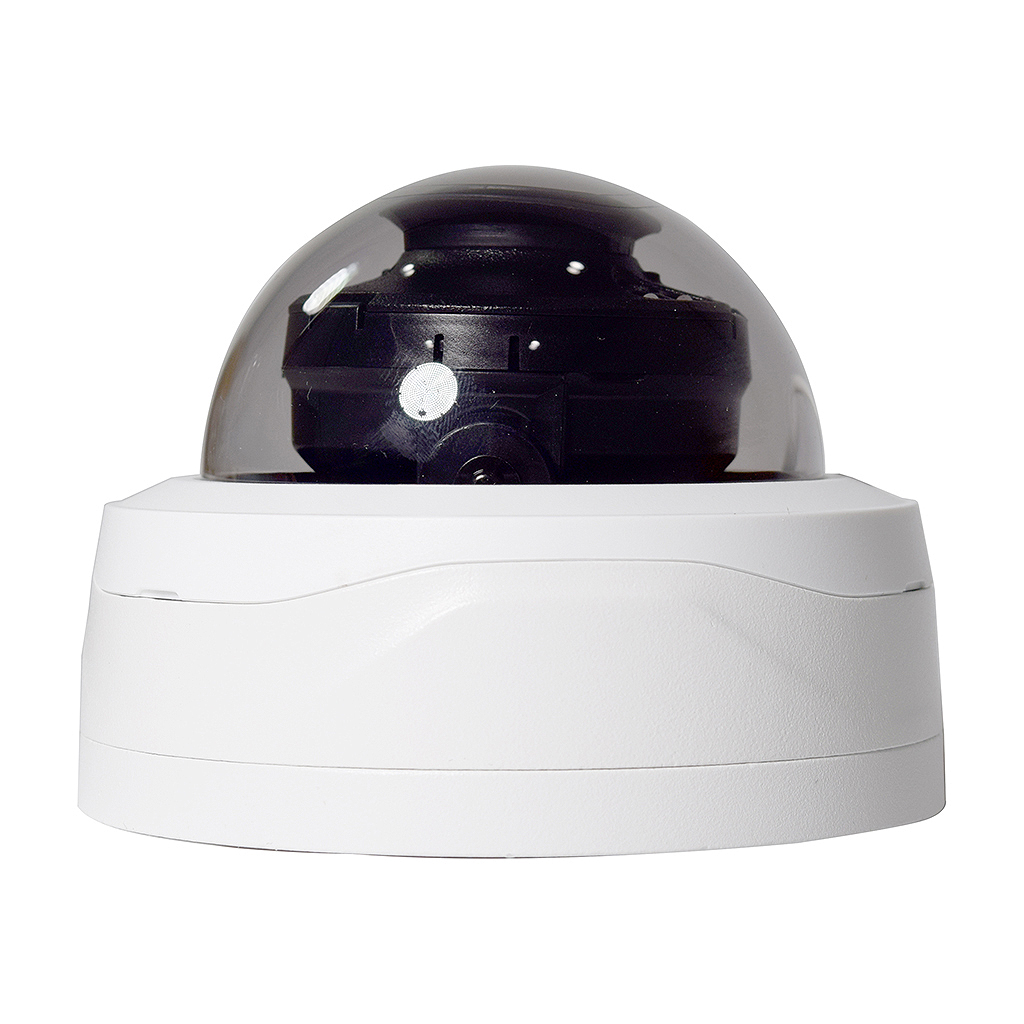

The IPVD-ELS8IR28A-EP is an 8MP (3840×2160) vandal dome camera with a 2.8mm fixed lens from our Elite series of cameras and you can be confident that it will give you an image with enough detail to identify a perpetrator in any situation. With an IP67 weather rating, a vandal resistance rating of IK10, and 6KV lightning rating for protection against lightning standards, this camera will work great for almost any environment indoors or outdoors.
This camera features the new ePoE technology that when paired with an ePoE recorder or an EP0E switch, you will be able to transmit data and supply power to the camera over 2600 feet at the speed of 10Mbps or 980 feet at the speed of 100Mbps using Cat5 or Cat6 Ethernet cable. Compatible recorders will allow you to use the newest H.265+ compression but it’s also backwards compatible with H.265, H.264, and H.264+. This camera also come equipped with IVS (Intelligent Video Surveillance) settings such as Tripwire, Intrusion, and Abandoned/Missing objects which are all added security features that can be used to trigger events for recording. The recordings by IVS are much more effective than the standard motion detection recordings, giving you significantly less false records.

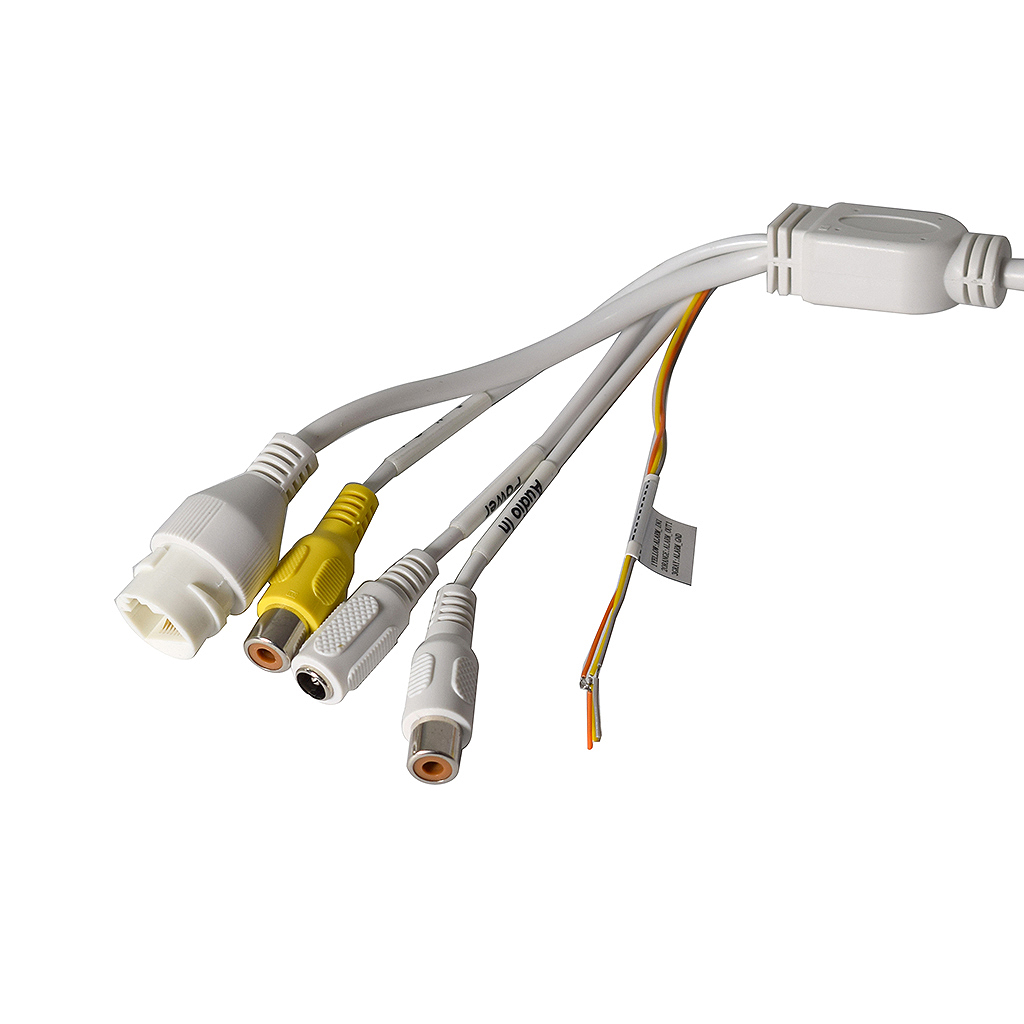

Also included on the camera pigtail are 1 RCA audio input and 1 RCA audio output so you can have 2 way communication and 1 alarm input and 1 alarm output which can be set to trigger an alarm based on an event. Adding even more value to this camera is the Starlight™ smart IR technology which will allow for sharper images at night and with enough ambient lighting you may be able to see in full color at night. This camera can also record to a Micro SD card up to 128gb.
This camera has some great software features including WDR (120db), Day/Night (ICR), 3DNR, AWB, AGC, and BLC. This camera is ONVIF, CGI, and PSIA compliant and can be used with any of our NVR recorders. With all these great hardware and software features on this camera, you will be very happy with the images you are recording in any situation. Software for this camera is free and can be downloaded from our website. For PC and Mac you can view this camera on Smart PSS and for Android and iOS, you can use the Elite Viewer Pro application which can be downloaded through the Google play store or Apple store.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Enhanced POE
ePoE you can simplify the wiring requirements enabling you to reach distances of a single run up to 800 meters (over 2,600 feet) at a speed of 10Mbps.
Features
Starlight
Starlight security cameras outperform and overachieve all traditional night vision cameras. Starlight technology is able to capture high-quality images in places with little to no light as well as areas with no light whatsoever. It is the latest technological development in nighttime and low-light surveillance.
ePOE
ePoE, or enhanced Power over Ethernet, is an innovative solution that utilizes specialized algorithms capable of extending how far both IP and analog security cameras can reach. ePoE devices are now standard on ONVIF devices and can even be incorporated into traditional PoE systems. What makes ePoE devices different is that they have the capability of converting coaxial infrastructures with the latest IP devices. This capability makes it possible to increase transmission distances through both coaxial and ethernet cables.
4K Ultra High Definition Resolution
4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.
Weather Resistant
Remote Viewing Apps
The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.
| Features | IVS |Smart IR | ePoE | WDR | Smart Codec | 3D DNR | Starlight™ |
| Lens | 2.8mm Fixed Lens |
| Megapixel | 8MP |
| Image Resolutions | 4K(3840x2160)/6M(3072x2048)/5M(2560x1920)/ 3M(2048x1536)/3M(2304x1296)/ 1080P(1920x1080)/1.3M(1280x960)/ 720P(1280x720) |
| Sensor Size | 1/2.5 inch 8MP progressive scan CMOS |
| IR Distance | 98 FT |
| Weather Protection | IP67 |
| Voltage | DC 12V, PoE (802.3af) (Class 0) |
| Temp Range | -22° F ~ +140° F) / Less than 95% RH |
| Dimensions | 4.33in x 4.33in x 3.19in |
| Weight | 1.17 lb |
| Audio | Capable With External Mic |
| SD Card Compatible | Yes |
| Perimeter Protection | No |
| Object Detection | No |
| Face Detection | No |
| Face Recognition | No |
| Smart Motion Detection | No |
| LPR | No |
Video
Downloads
Document Downloads
 |
Product Specifications | Detailed Feature List and Product Specifications |
|
Product Manual | Original Product Manuals |
