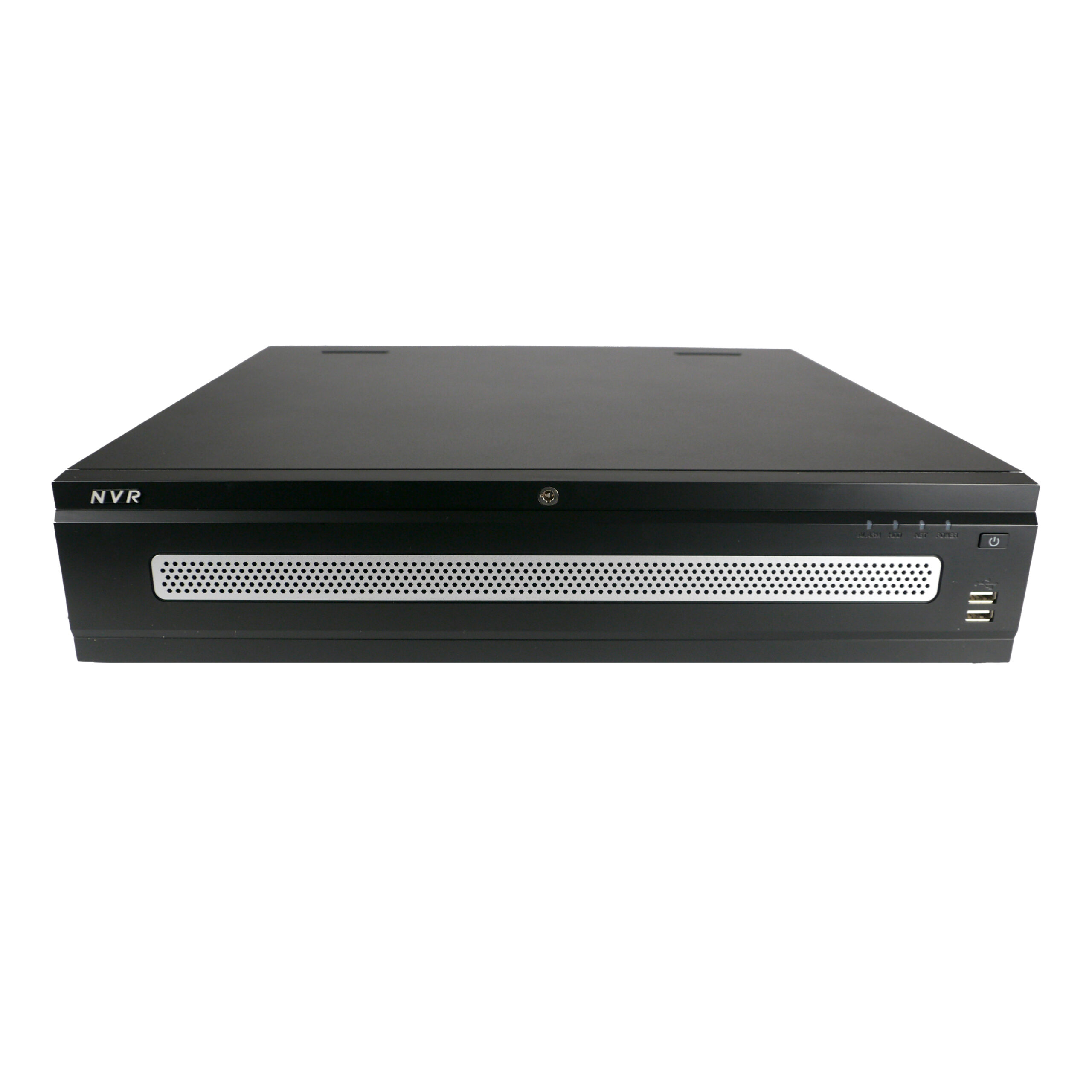

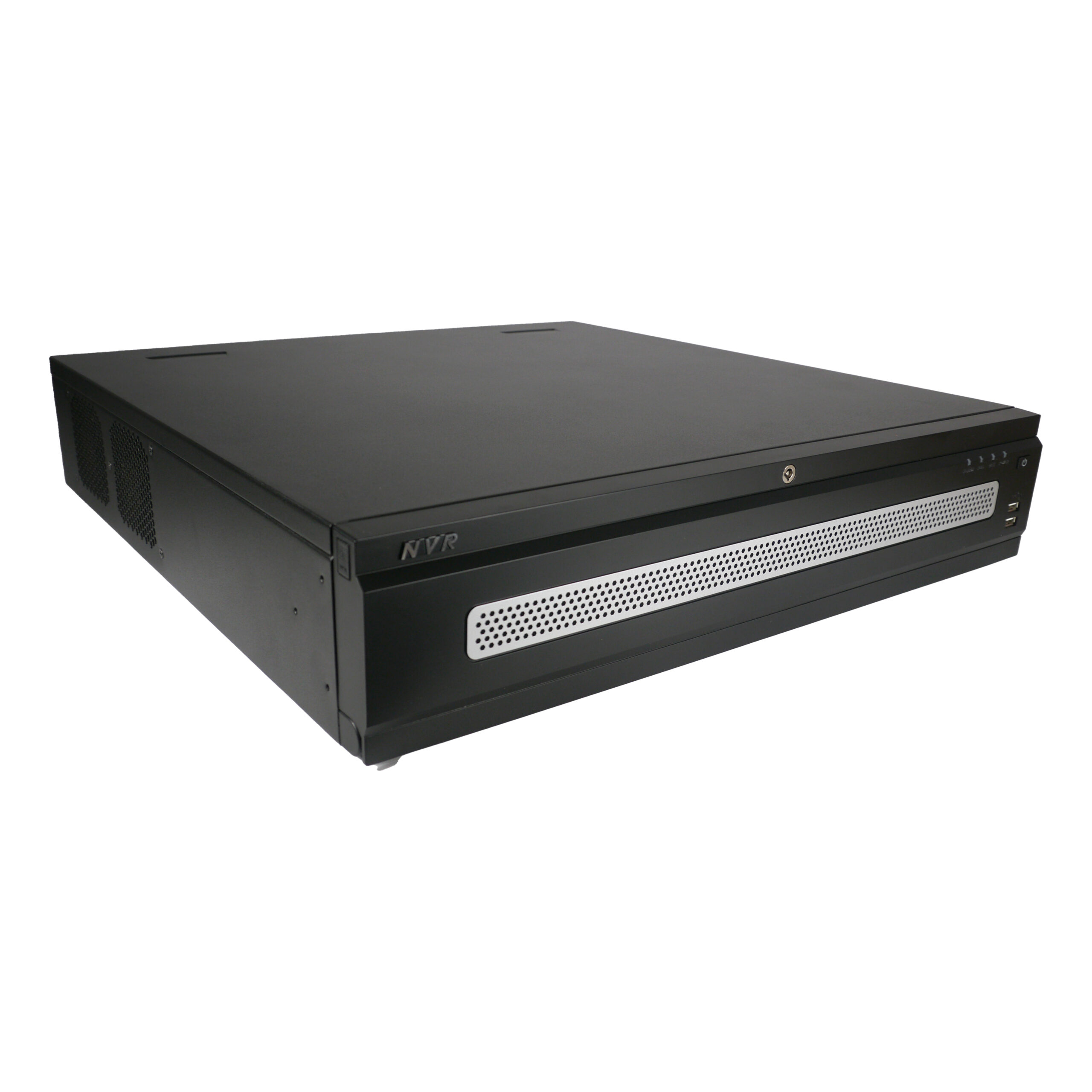

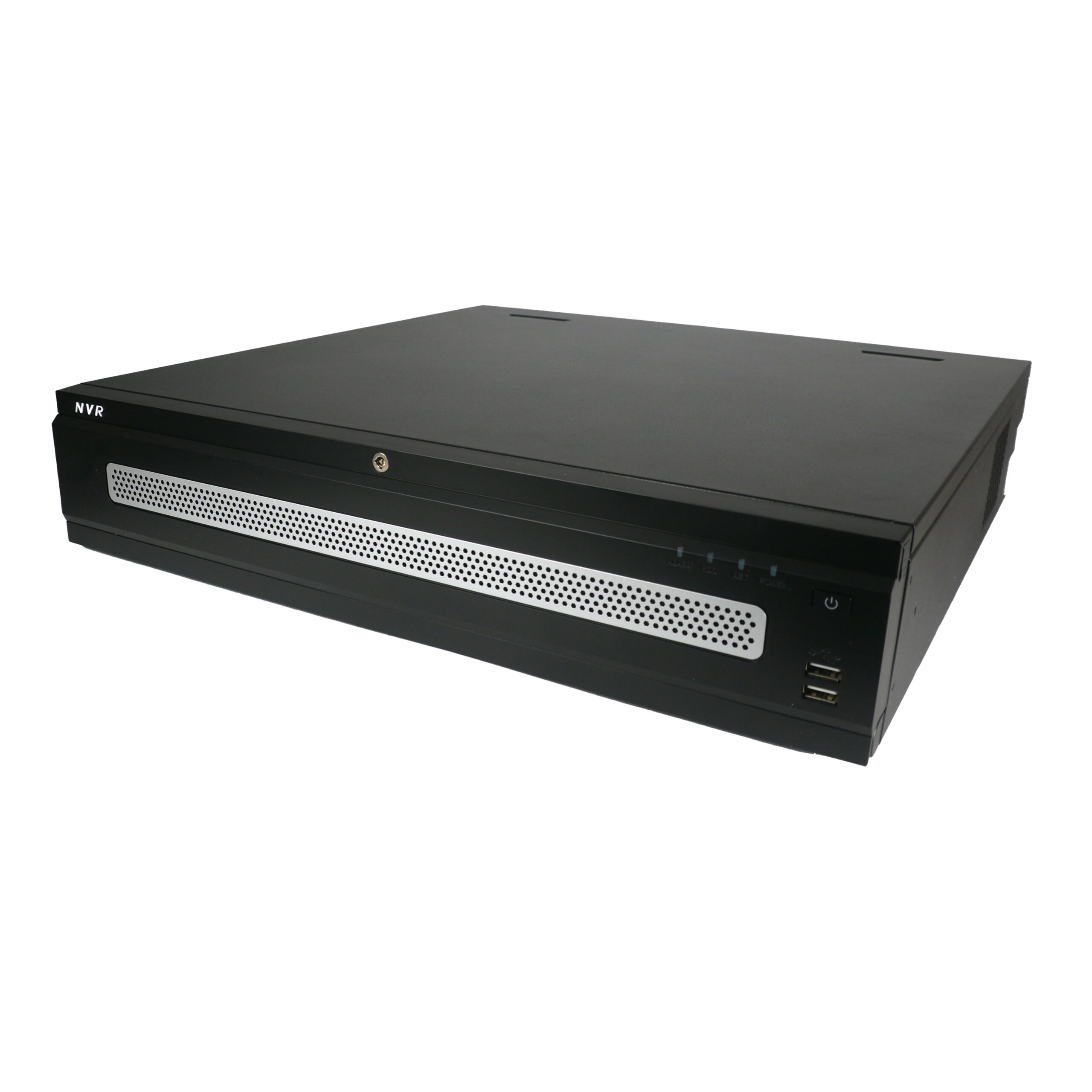

Introducing the NVR-ELHS-128-DH, the latest addition to our Elite Series of professional Network IP NVRs. This powerhouse is designed for enterprise-grade video surveillance, providing maximum reliability and advanced AI capabilities.
With 128 channels and a 2U chassis that supports up to 8 hot-swappable HDDs, the NVR-ELHS-128-DH ensures scalable storage and seamless performance. It decodes a wide range of formats, including Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG, offering maximum efficiency in video compression.
The unit supports up to 32 × 1080p @ 30 fps decoding, with an impressive 1280 Mbps for incoming, recording, and outgoing bandwidth. The innovative AcuPick technology accommodates up to 64 channels for advanced search and video management.
AI-driven, this NVR supports 8-channel face detection and recognition with up to 300,000 face images in its database, 32-channel perimeter protection, and SMD Plus for enhanced accuracy in event detection. With AI by Camera technology, it also provides advanced features like ANPR (Automatic Number Plate Recognition), people counting, and heat maps.
Other key features include N+M clustering, support for RAID 0/1/5/6/10, and a user-friendly drawer-like chassis for easy HDD swaps. Enhanced security is provided with Baseline 2.3 compliance, and One-click Arming & Disarming ensures quick setup in critical moments.
Ideal for high-demand applications, the NVR-ELHS-128-DH delivers robust, AI-powered surveillance solutions for modern security systems.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Features
Remote Viewing Apps
The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.
| Number Of Cameras | 128 |
| Number Of SATA Connections | 8 |
| Has Alarm Inputs / Outputs | 16 Inputs | 8 Outputs |
| Video Output Types | HDMI 4X, VGA 2X |
| Video Output Resolutions: | 4K, 2MP, 1.3MP, 1MP, 960H |
| Size | 2U |
| Resolutions Capable | 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1 |
| Max Bandwidth | AI disabled: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing AI enabled: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoing |
| Display Screen Split | Main 1/4/8/9/16/25/36/64 | Sub 1/4/8/9/16/25/36 |
| Compression of Video | Smart H.265+ |
| Connection Apps | Smart PSS, Elite Viewer Pro, DMSS, DSS Express/Pro |
| Recorder Features | AI |
| Perimeter Protection | Yes |
| Object Detection | Yes |
| Face Detection | Yes |
| Face Recognition | Yes |
| Smart Motion Detection | Yes |
| LPR | Yes |
