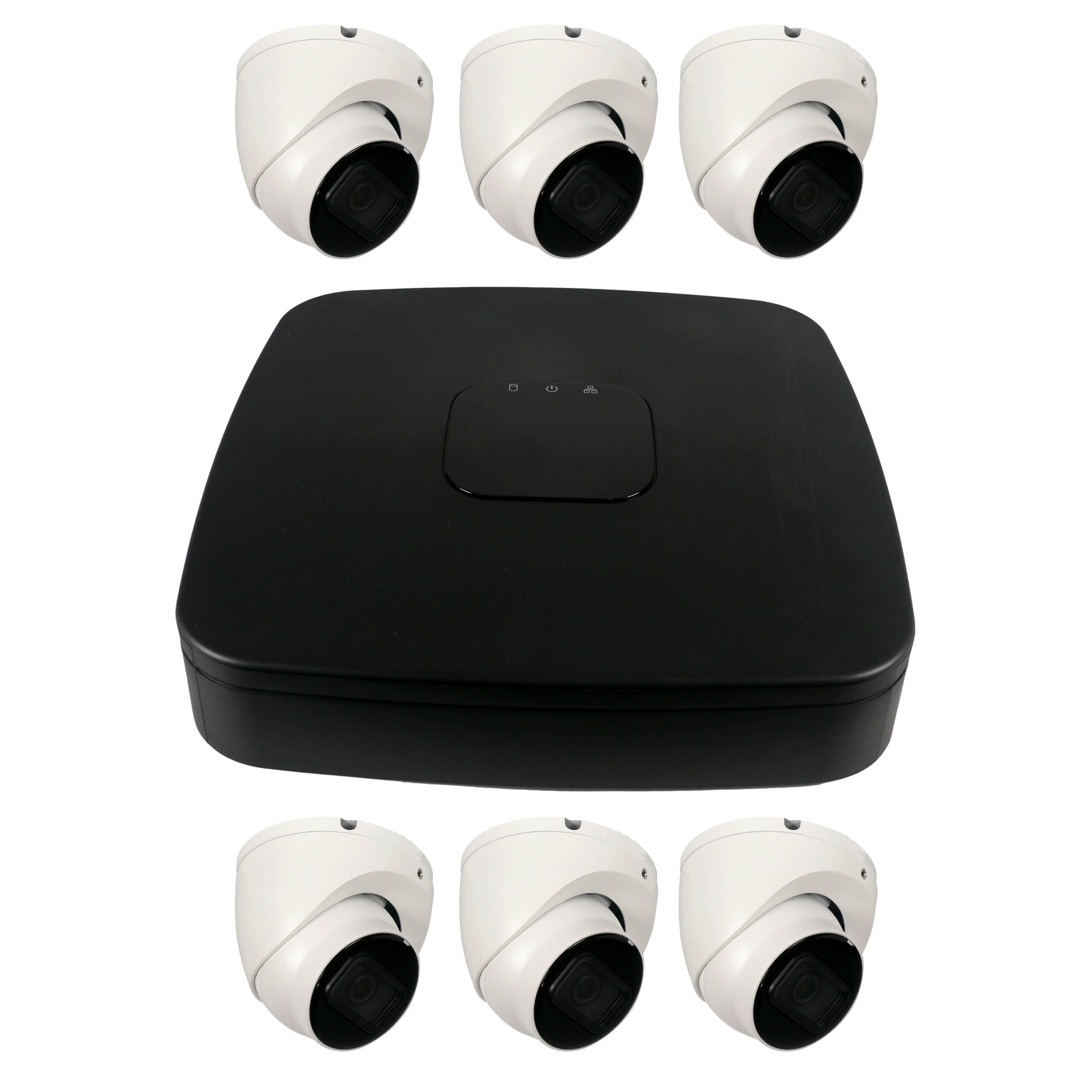

The IPKIT-ELME8P-6OD is a 6 IP camera kit from our Elite series of security camera equipment. This kit includes six turret dome style 4 MP (2560 × 1440) IP cameras and one eight channel 4K Network Video Recorder (NVR). We are offering this package to simplify the decision process.

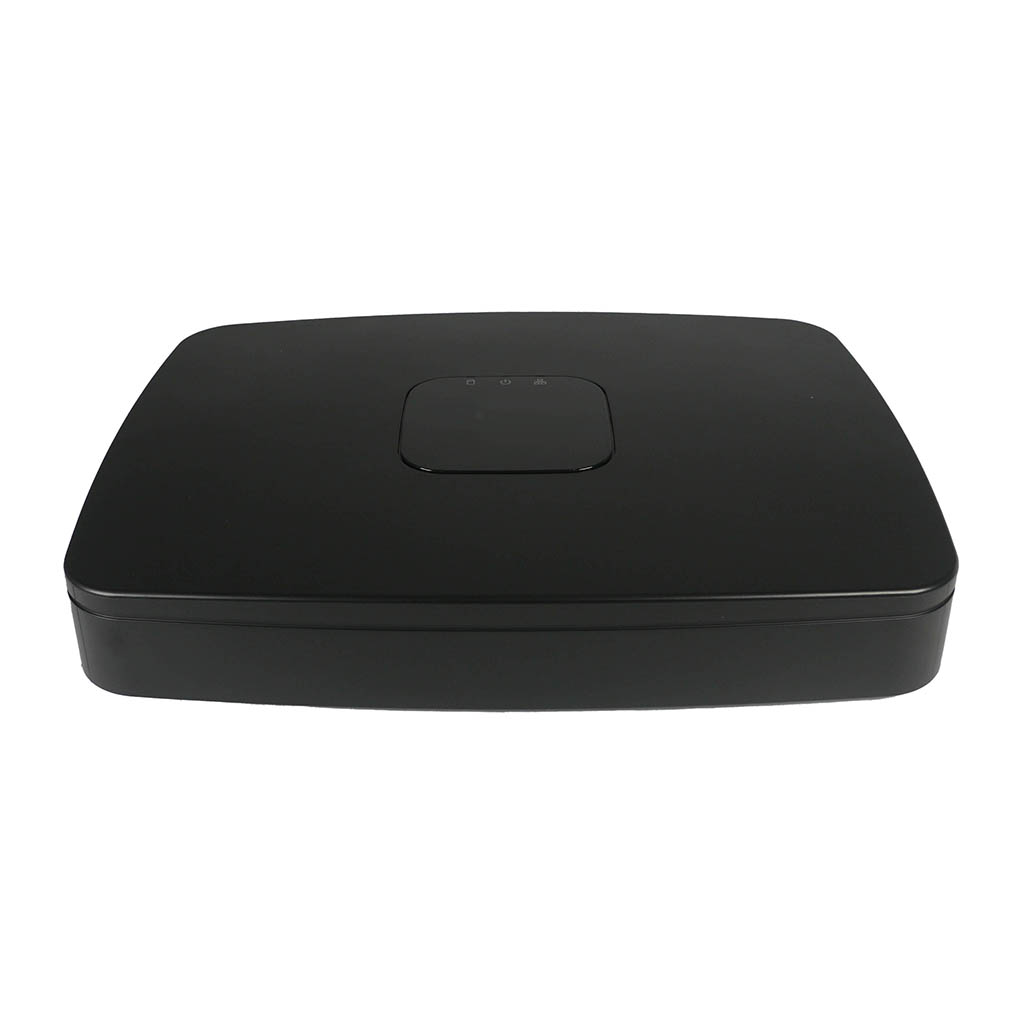

The NVR comes with a 2 TB hard drive pre-installed in it. It offers customizable recording options and schedules. It has the ability to do constant and/or motion based recording based on schedule. This maximizes the storage space and reduces the amount time it takes to review recorded footage.

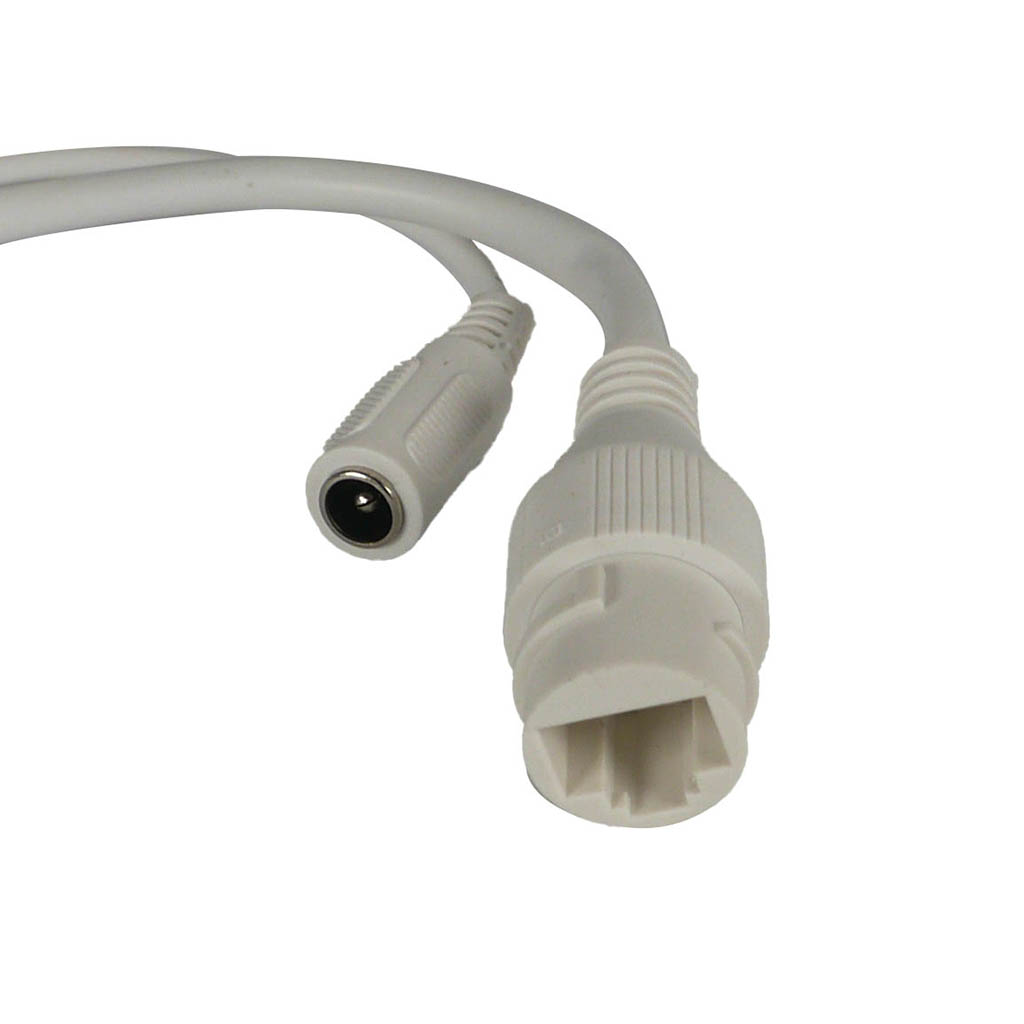

The cameras will provide 4MP at a maximum of 20 frames per second. They provide up to 98 ft of Infrared Red. This Smart IR will adjust to illuminate the area just right. They are designed for use indoors and out although you will need to protect the connectors from the elements. The junction box and wall mount in the recommended accessories section of this page can help with this.
Features
4K Ultra High Definition Resolution
4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.
Weather Resistant
Remote Viewing Apps
The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.
| Recorder | N41CJ02 |
| Number Of Cameras | 8 |
| Number Of Hard Drives | 1 |
| Number Of SATA Connections | 1 |
| Has Alarm Inputs / Outputs | Yes |

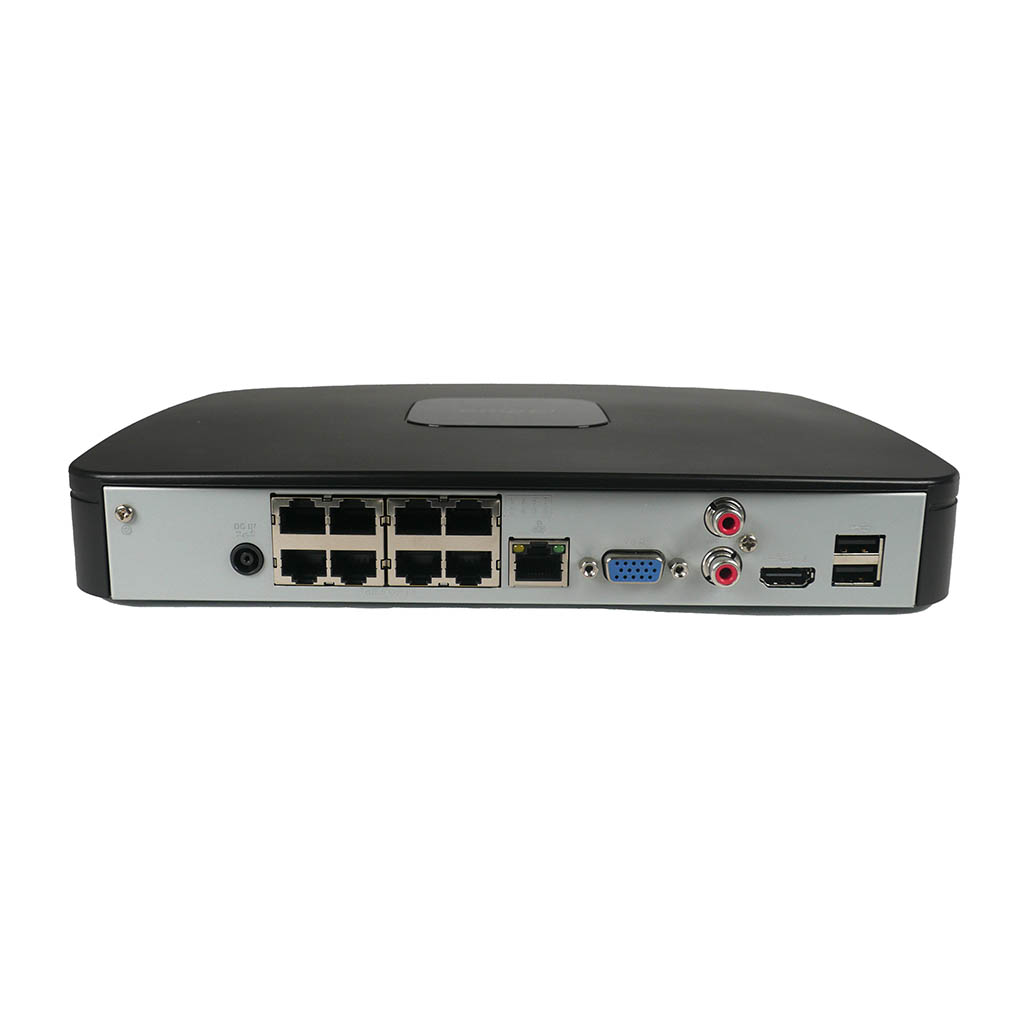

| Video Output Types | HDMI/VGA |
| Video Output Resolutions: | HDMI 1: 3840×2160, 1920×1080, 1280×1024, 1280×720 | HDMI 2 & VGA: 1920×1080, 1280×1024, 1280×720 |
| Size | Mini 1U |
| Resolutions Capable | 8MP,6MP,5MP,4MP,2MP,1080P,720P, D1 |
| Max Bandwidth | 80Mbps |
| Display Screen Split | 1/4/8/9 |
| Compression of Video | H.265+ |

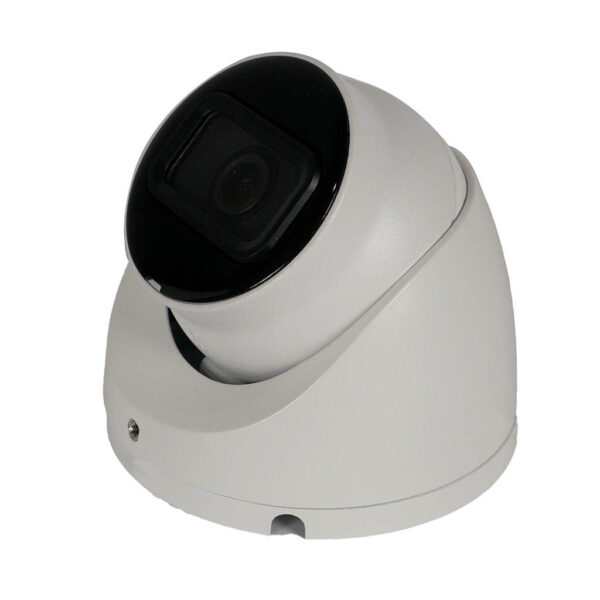

| Camera | N41CJ02 |
| Features | 4MP at 30 fps Maximum Resolution, 2.8 mm fixed lens, Motion Detection, IP67 Ingress Protection |
| Lens | 2.8mm |
| Megapixel | 4MP |
| Image Resolutions | 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Sensor Size | 1/3-in. 4MP Progressive-scan CMOS |
| IR Distance | Distance up to 30.0 m |
| Weather Protection | IP67 |
| Voltage | 12 VDC or PoE |
| Temp Range | (–40°F to +131°F), Less than or equal to 95% RH |
| Dimensions | 3.4 in. x 3.7 in. |
| Weight | 0.71 lb |
| Audio | None |
| SD Card Compatible | No |
Downloads
Document Downloads
 |
Product Specifications | Detailed Feature List and Product Specifications |
|
Product Manual | Original Product Manuals |
