Description
16
Number of Cameras
2
Number Of HDD
8MP
Max Recorder Resolution
H.265
Compression
Description
This package does not include a hard drive they are sold as an additional option.

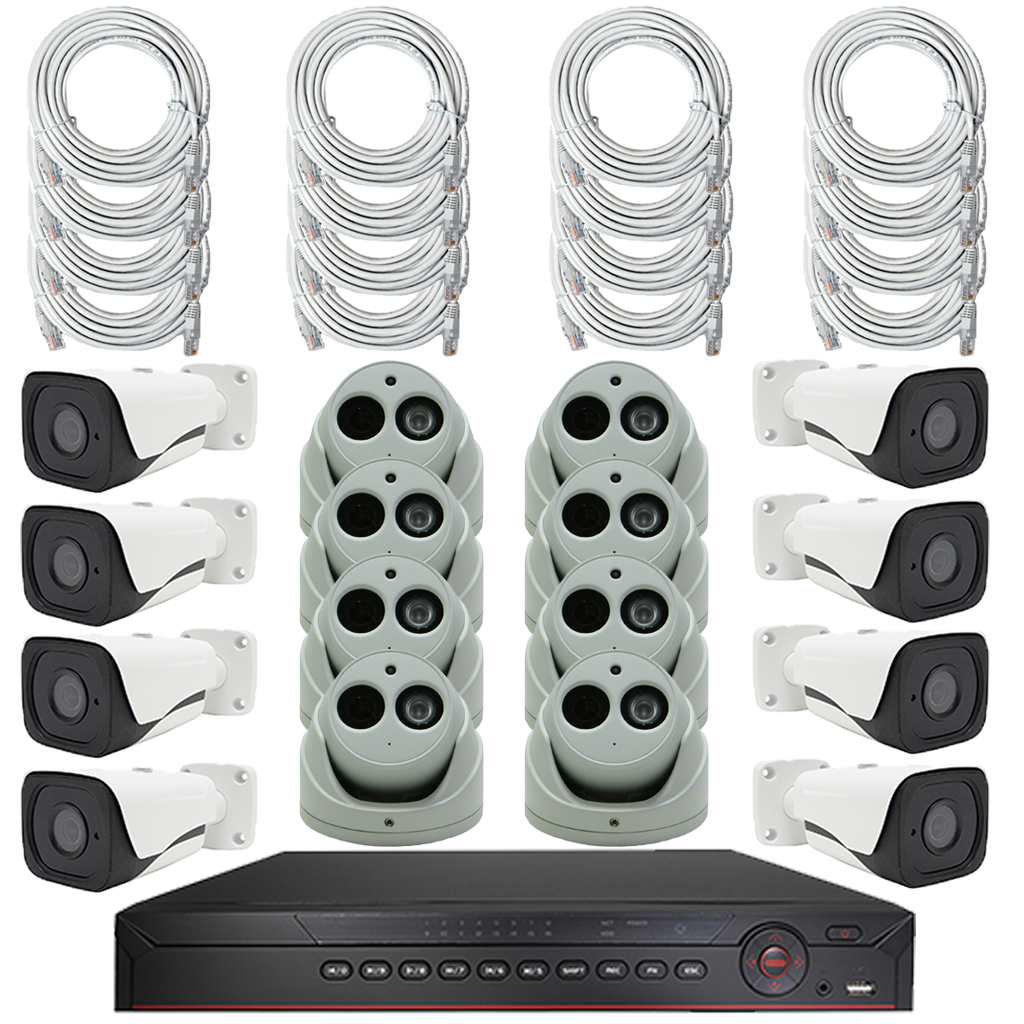

This Package Includes
1 Recorder
16 Channel NVR with 16 POE – (NVR-ELE16M-16P4KV2)
8 Dome Cameras
8MP 2.8mm Dome Security Cameras – (IPOD-ELS8IR28A-EP)
&
8 Bullet Cameras
8MP 2.8mm Bullet Security Cameras – (IPOB-ELS8IR28-EP)
16 CAT5 Ethernet Cable
100FT CAT5 Patch Cables – (CAT5-100FT)
Add Optional Storage
HDD Options
1TB – 10TB
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Features
Recorder
Recorder | NVR-ELE16M-16P4KV2 |
Number Of Cameras | 16 |
Number Of SATA Connections | 2 |
Has Alarm Inputs / Outputs | Yes |
Video Output Types | HDMI/VGA |
Video Output Resolutions: | 8MP(3840×2160), 2MP(1920×1080), 1.3MP(1280×1024), 1MP(1280×720) |
Size | 1U |
Resolutions Capable | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 & etc. |
Max Bandwidth | 200 Mbps |
Display Screen Split | 1/4/8/9/16 |
Compression of Video | H.265 |
Connection Apps | ELITE Viewer Pro | Smart PSS |
Camera
Camera | IPOD-ELS8IR28A-EP | IPOB-ELS8IR28-EP |
Features | ePoE | Smart IR | 3D DNR | Smart Codec | IVS | WDR |
Lens | 2.8mm Fixed Lens |
Megapixel | 8MP |
Image Resolutions | 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/ 3M(2048x1536)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720) |
Sensor Size | 1/2.5” 8Megapixel progressive scan CMOS |
IR Distance | 164 Feet | 131Feet |
Weather Protection | IP67 |
Temp Range | -22°F ~ 140°F / Less than 95% RH |
SD Card Compatible | Yes |
